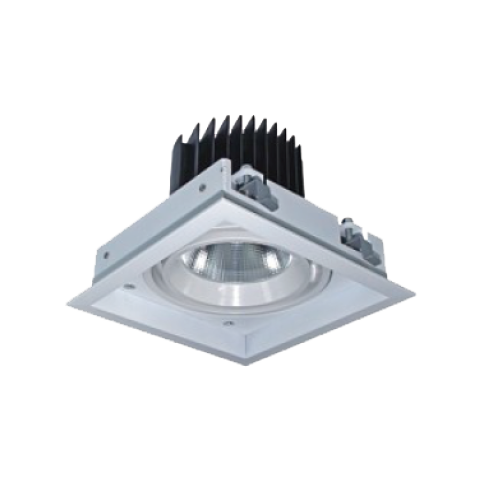

PLAT I Series

Features

  • Recess mounted and adjustable type
  • Die casting aluminum
  • Static spray coating surface
  • Unique fin design
  • Uniform illumination with special reflector
  • High power efficiency (>0.85) and power factor(>0.9)
  • Remote-type LED driver
  • Optional 1~10V driver for dimming control
  • Optional dali driver for dimming control
  • Optional DMX driver for dimming control
  • Optional battery kit for emergency lighting
  • Optional DMX driver for DMX512 dimming control
  • E
  • F
  • CE
  • RoSH
  • IP44

Applications

  • Indoor
    Indoor
  • Hotel
    Hotel
  • Shop & Mall
    Shop & Mall

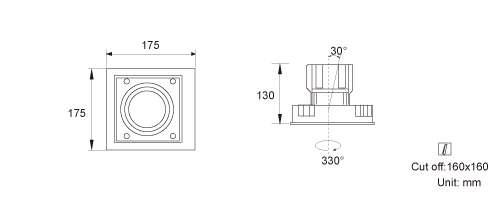

Product dimensions

Product dimensions
Models Power Luminaire Efficacy Color Temperature Color Rendering Index Beam Angle Power Factor
CEDL1X30WOMPICNW 1X30W 70lm/w 2700K 80 15°/20°/24°/40°/60° 0.9
CEDL1X30WWMPICNW 1X30W 80lm/w 3000K 80 15°/20°/24°/40°/60° 0.9
CEDL1X30WNMPICNW 1X30W 85lm/w 4000K 80 15°/20°/24°/40°/60° 0.9
CEDL1X30WDMPICNW 1X30W 90lm/w 5000K 80 15°/20°/24°/40°/60° 0.9
CEDL1X30WCMPICNW 1X30W 100lm/w 6500K 80 15°/20°/24°/40°/60° 0.9

Please send email to us should you require further info about our product series.
Models IES LDT LM-79-08 Tender Text
CEDL1X30WOMPICNW - - - upload
CEDL1X30WWMPICNW - - - upload
CEDL1X30WNMPICNW - - - upload
CEDL1X30WDMPICNW - - - upload
CEDL1X30WCMPICNW - - - upload

Please send email to us should you require further technical data of our products.
