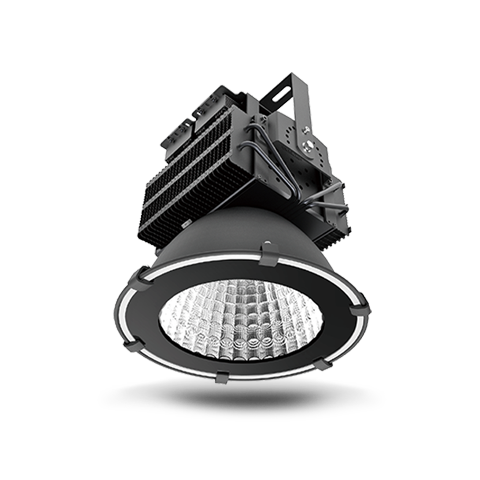

PRO Series 250W & 300W

Features

  • Anode oxidized 1060 aluminum heatsink fins and clear tempered glass with 93%
  • transparent
  • Copper heatpipe in-side to conduct heat rapidly from chips bottom to the fins, greatly
  • lower down the temperature of light source
  • The entire housing coasted by electrophoretic plait, excellent corrosion resistance
  • Respirator design for Waterproof design, eliminating mist, avoiding condensation,improving
  • quality,extending the life span
  • Stainless steel screws and parts
  • The symmetrical beam light distribution is suitable especially for the illumination of building
  • Reflector made of anodized pure aluminum with 92% reflective rate
  • CE
  • RoSH
  • IP65

Applications

  • Outdoor
    Outdoor
  • Industrial & Warehouse
    Industrial & Warehouse
  • Public Facility
    Public Facility

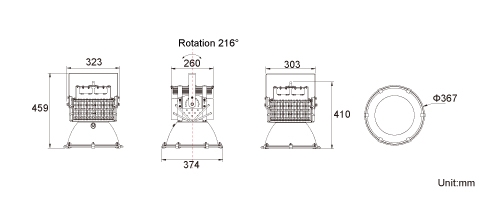

Product dimensions

Product dimensions
Models Power Luminaire Efficacy Color Temperature Color Rendering Index Beam Angle Power Factor
CEHBL250WWMPNB 250W 90lm/w 3000K 80 25°/45°/60°/90°/100° 0.95
CEHBL250WNMPNB 250W 100lm/w 4000K 80 25°/45°/60°/90°/100° 0.95
CEHBL250WCMPNB 250W 105lm/w 6500K 80 25°/45°/60°/90°/100° 0.95
CEHBL300WWMPNB 300W 90lm/w 3000K 80 25°/45°/60°/90°/100° 0.95
CEHBL300WNMPNB 300W 100lm/w 4000K 80 25°/45°/60°/90°/100° 0.95
CEHBL300WCMPNB 300W 105lm/w 6500K 80 25°/45°/60°/90°/100° 0.95

Please send email to us should you require further info about our product series.
Models IES LDT LM-79-08 Tender Text
CEHBL250WWMPNB - - - upload
CEHBL250WNMPNB upload upload upload upload
CEHBL250WCMPNB - - - upload
CEHBL300WWMPNB - - - upload
CEHBL300WNMPNB upload upload upload upload
CEHBL300WCMPNB - - - upload

Please send email to us should you require further technical data of our products.
